Technical Principle
Irreversible Electroporation (IRE) Technology
Irreversible electroporation operates by applying high-voltage electric fields through a pulse generator that delivers microsecond-duration electric pulses. This induces transmembrane potential formation on cell membranes, locally overcoming the dielectric strength of phospholipid bilayers. The process creates hydrophilic nanopores (nanometer-scale pores) within the lipid bilayer, altering membrane permeability. When energy exceeds threshold levels, it causes permanent membrane permeabilization, disrupting intracellular homeostasis and triggering programmed cell apoptosis.
Key Features of Irreversible Electroporation (IRE) Technology
1. Non-Thermal Ablation : Ensures procedural safety with no anatomical restrictions, Eliminates risk of rectal fistula associated with traditional thermal ablation.
2. High Tissue Selectivity : Preserves vascular structures and neural bundles within ablation zones,Maintains sexual function and urinary continence in prostate cancer patients.
3. Ultra-Minimally Invasive : Requires only 1mm-diameter needles (sub-millimeter scale).
Indications
- 1This product is used in medical institutions for the ablation treatment of malignant solid liver tumors.
Applicable Population:
1) Age: Adult patients aged 18 to 80 years, regardless of gender;
2) Diagnosis: Malignant liver tumors confirmed by imaging or pathology;
3) Liver cancer patients with liver function classified as Child-Pugh Class A or B;
4) Single tumor with diameter ≤ 3.1 cm; maximum tumor diameter ≤ 3 cm with number of lesions ≤ 3; 5) Expected survival period > 6 months. - 2Applicable Sites:
Malignant tumors in the left lobe, right lobe and junction area of the liver.
Disease Severity and Stages:
Malignant liver tumors;
Patients with liver function classified as Child-Pugh Class A or B;
Uncontrollable severe comorbidities (e.g., refractory ascites, severe portal hypertension, etc.).
Product Advantages
Nuosheng Compound Steep Pulse Therapeutic Device features four core advantages
Precise Ablation
Clear boundary of the ablation area
High rate of cell apoptosis within the ablation area
Non-Thermal Ablation
Dominated by non-thermal effects
Reduces the impact of heat sink effect
Tissue Selectivity
More compatible with blood vessels, bile ducts and other structures
Suitable for evaluative application in high-risk adjacent areas such as the hepatic hilum
Easy-to-Operate Ultra-Minimally Invasive Treatment
Only a few needle-track injuries (approx. 1mm in diameter)
Simple operation with minimal bleeding
Fast postoperative recovery, helping reduce the burden of hospitalization and follow-up

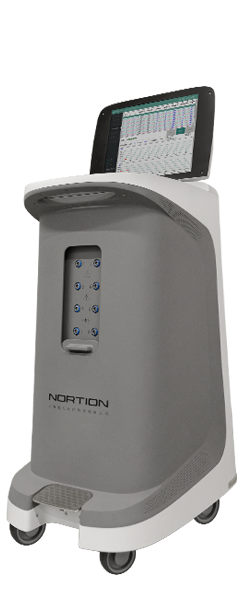

Product Configuration
| Serial No. | Component | |
|---|---|---|
| 1 | Touch Display | |
| 2 | Emergency Stop Switch | |
| 3 | Touchpad Keyboard | |
| 4 | Electrode Needle Connector | |
| 5 | 5 USB Interfaces | |
| 6 | Standby Switch | |
| 7 | Mains Power Input Jack Assembly | |
| 8 | Foot Switch Interface |
